Quintic Case Study: Using Quintic Biomechanics to Compute Joint Specific-Powers in Cycling

Paul Barratt, Biomechanist
English Institute of Sport (North West)

Maximum cycling power is a major determinant of sprint cycling performance. Overall power output can be recorded accurately and reliably using on-bicycle instrumentation such as the SRM system (Schoberer Rad Messtechnic; Germany). Whilst overall power output is a very useful performance indicator, it is limited as a biomechanical measure as it does not give any indication of the movement strategy adopted by the cyclist. A more detailed analysis of power is available via an inverse dynamics analysis, as described by Hull and Jorge (1985) (A Method for Biomechanical Analysis of Bicycle Pedalling, Journal of Biomechanics. Vol 18; 9 p 631-644), which allows for the calculation of joint-specific power outputs. By determining hip, knee and ankle power we can understand in much greater detail how the cyclist produces their maximum overall power output. This information is valuable in understanding how to improve cycling performance and reduce injury. For an inverse dynamics analysis, three pieces of information are required: force output (kinetics), kinematics and body segment parameter data. The purpose of this case study is to describe how Quintic Biomechanics can be used to collect 2-dimensional kinematics data for the inverse dynamics analysis.

Quintic BG Cycling - EIS

Data Collection

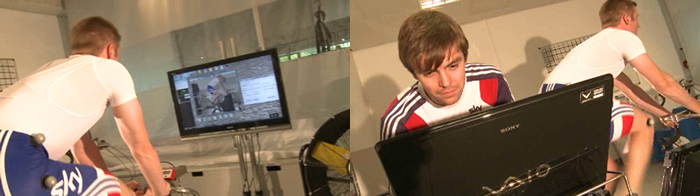

Data for the inverse dynamics analysis are collected during a short "all-out" maximal sprint. For this, the cyclist is instructed to apply as much force as possible to the pedals throughout the effort. The sprint is performed on a cycling ergometer which applies resistance to the cyclist in order to control their pedalling rate. For the kinematics data, a Casio EX-F1 camera, with studio lighting, is set at a frame rate of 300 frame/sec and 1/2000th sec shutter speed. Before data collection a calibration square is placed next to the ergometer and a short video clip collected for the Quintic Biomechanics calibration procedure. Reflective markers are placed on the pedal spindle, 5th metatarsal joint on the foot, ankle joint centre, knee joint centre and hip joint centre of the cyclist. Video is collected during the sprint and Quintic Biomechanics is used post-event to obtain the kinematics data from the video.

Data Processing
Following data collection the video of the sprint is opened in Quintic Biomechanics and the digitisation menu used to set the frame rate and calibrate the file. A five-point cycling model template is created and saved linking the pedal spindle, 5th metatarsal, ankle joint, knee joint and hip joint. Using the automatic digitisation procedure, the five joint markers are tracked and digitised automatically for 3 complete pedal revolutions during the most powerful part of the sprint. Once digitised, the in-built filtering options are set to optimally smooth the raw data. Position, velocity and acceleration data of the hip, knee and ankle are viewed and analysed in the angular analysis menu. Finally, the kinematics data are exported directly to Microsoft Excel, where the inverse dynamics analysis is completed with the kinetics and body segment parameter data.

Quintic Biomechanics - AutoTracking 5 Markers : GB Cycling / EIS / Quintic

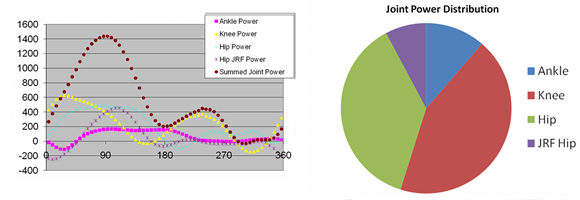

These results clearly demonstrate the relative contribution of each of the lower limb joints to overall maximal power output. This information can be used to make cross-sectional comparison between different cyclists or different bicycle setups, and also as a longitudinal measure to monitor the effect of different training interventions. This information is highly relevant to cyclists, coaches and sport scientists.

GB Cycling - Joint Power

The automatic digitisation procedure available in Quintic Biomechanics allows for the easy collection of kinematics data from video clips. Other options of collecting kinematics data (e.g. manual digitisation or 3-D motion analysis) are either too time consuming or too costly to be considered for most applied sports science settings. An additional benefit is that by collecting kinematics data from video, it allows for the movement to be analysed both quantitatively (collecting kinematics data) and qualitatively (analysing movement directly from the video). This ability to use both video and data is particularly useful when working with coaches and athletes in order to explain biomechanical concepts.

In summary, the automatic digitisation procedure in Quintic Biomechanics can be used to accurately and reliably generate kinematics data to use in an inverse dynamics analysis. This procedure allows the calculation of joint-specific power outputs in cycling, which is a highly relevant measure for the understanding of cycling performance.

British Cycling - Quintic

Special thanks to Paul Barratt, Biomechanist, English Institute of Sport (North West) for GB Cycling
