Quintic USB3 High-Speed LIVE Camera - 1 MPixel

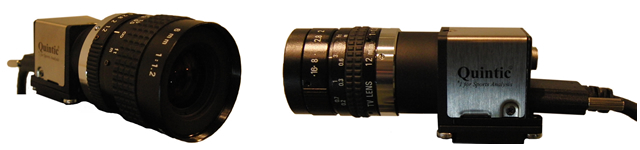

Quintic USB3 LIVE Camera

Images for illustrative purposes only

Compatible with Quintic Sports, Coaching & Biomechanics

USB 3.0, CMOS, 60 fps, 1280 x 1024, 1 MPixel, 1/2", e2v Sensor, Global Shutter
USB3 Camera comes with Tripod Mount with options for C-Mount lens.
C-Mount lenses are required in addition to the camera
(different zoom & focal lengths)
Optional frame rate between 60 and 300 frames per second (with varying image dimensions)

Quintic USB3 Camera

Images for illustrative purposes only
For further information and for orders please Contact Us

Quintic USB3 Camera highlights include :

  • 60 frames per second avi video capture (1280 x 1024 image size dimensions)
  • 100 frames per second avi video capture (1280 x 600 image size dimensions)
  • 200 frames per second avi video capture (1280 x 288 image size dimensions)
  • 300 frames per second avi video capture (1280 x 182 image size dimensions)
  • Optional frame rate between 60 and 300 frames per second (with varying image dimensions can be set to personal preference using AOI)
  • Fully integrated capture software with Quintic Sports, Coaching & Biomechanics
  • Windows Vista, Seven & Eight
  • Quintic Install Shield Software program
  • LIVE Camera capture - (Note: No tapes required)
  • e2v 1.3 megapixel CMOS sensor
  • Monochrome (Black & White)
  • Manual Shutter Speed Options 1/50---1/12000 sec : Ideal for Quintic Biomechanics / Coaching Automatic Tracking
  • Outstanding sensitivity to light in CCD quality
  • USB3 4m cable length direct to your computer
  • Housing Size: 5.0cm x 3.5cm x 3.5cm (L x W x H in mm)
  • Weight 60gms
  • C-Mount Lens are required in addition to the camera - see Quintic Lens C-mount page for lens specifications

For further information and for orders please Contact Us
