The Quintic Automatic Cycling Report has been developed in order to produce detailed analysis of a cyclist’s technique in an applied setting.

Camera Set-Up: The cycling report is designed for use with up to FOUR synchronised cameras (front, back, left and right) in order to provide a full and comprehensive report. The cycling report can be created from fewer cameras than this, but the full data set will not be produced. It is possible to produce a report for either the right or the left side view individually. However, if capturing video from the front and/ or back view, you must also have the RIGHT side view camera in order to mark the start of each peddle revolution and for the key time events to be calculated. (i.e. you don't need all four videos to create a report...)

Number of Trials: Capture a single video containing 10 revolutions in one recording. When the files for all synchronised camera views are uploaded to the report software, the start and end of each revolution is automatically identified and the data then broken down into 10 separate revolutions for averages, consistancy and biomechanical analysis.

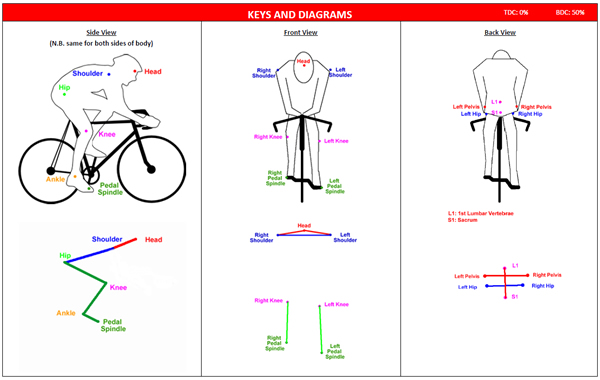

Anatomical Marking: To generate a complete report, reflective markers need to be positioned on the following anatomical landmarks:

Quintic Cycling

To generate a complete report, 15 reflective markers need to be positioned on the following anatomical landmarks:
Please note that 9.5 mm markers are recommended for all anatomical markers. Four high-speed cameras are used to capture the movement with reflective markers placed in the appropriate anatomical positions, as explained in the associated tutorial. Each video/trial is then digitised in the Quintic Biomechanics software and the data exported to Excel.

Report Output:

The Quintic Automatic Cycling Report can be used on a static bike or even on a treadmill. The report includes graphs, diagrams and statistics for the following 45 paramters:

  1. Hip Displacement: Vertical, anterior & posterior
  2. Head Displacement: Tilt, sway & lift

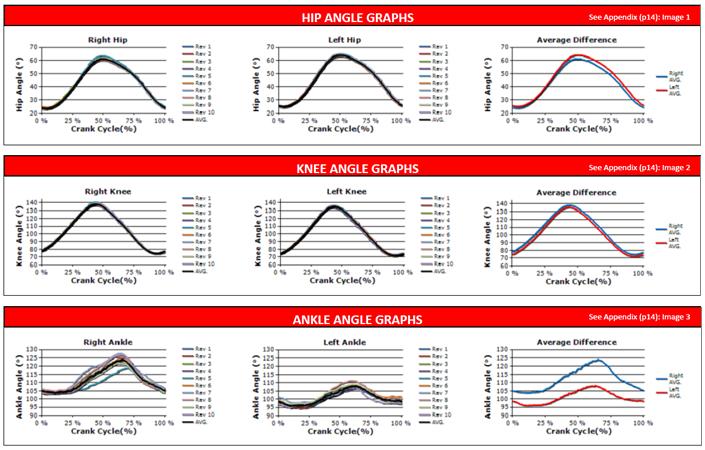

  3. Hip, Knee & Ankle Kinematics: Angular displacements & velocities
  4. Shank & Shoulder Angle
  5. Foot Angle & Angular Velocity

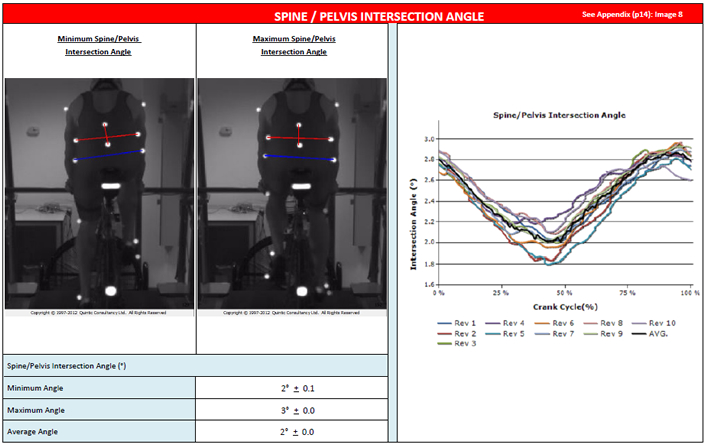

  6. Spine/Pelvis Intersection Angle
  7. Hip/Pelvis Line

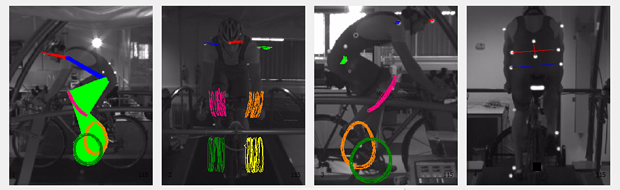

You also have the option to upload still image snapshots taken within the Quintic Biomechanics software in order to provide visual feedback and emphasise a particular point of the cyclist’s action.
    quintic Biomechanics - Cycling QAR

The relevant Excel files are then loaded into the report software and the PDF report is automatically generated, including the calculation of key time events and variables. This means that time does not need to be spent calculating the key variables and attempting to determine where the key frames are in the video.

Quintic Report - Example Pdf

Quintic - Cycling QAR

Quintic - Cycling
